RE: Screen Savers - vince - 07-01-2022
great mod, B+! thanks to Steve's ellipsefill you made something almost interesting interesting
RE: Screen Savers - bplus - 07-01-2022
So "almost" a thumbs up then, OK LOL!
RE: Screen Savers - bplus - 07-04-2022

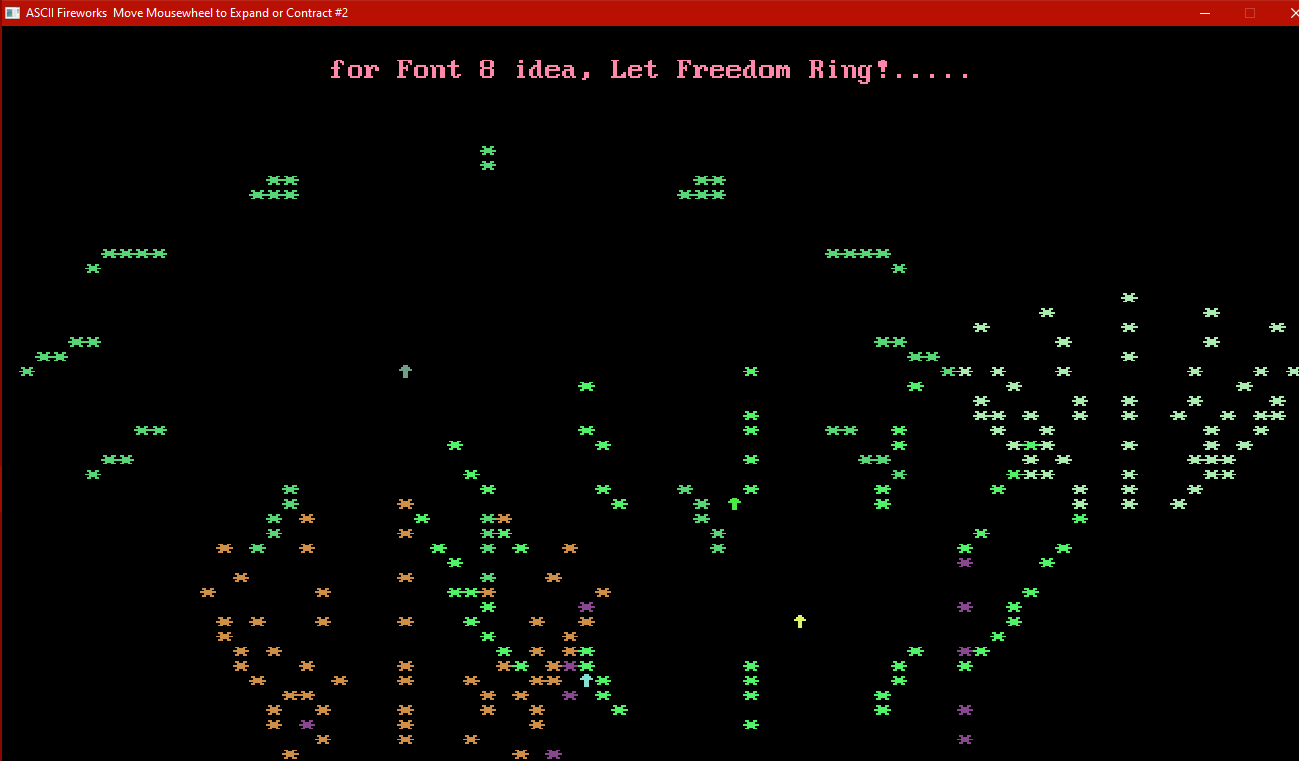

Celebrate The Fourth With Some Fake Fireworks
Code: (Select All) DefInt A-Z
_Title "ASCII Fireworks Move Mousewheel to Expand or Contract #2" '2020-01-01
' 2020-01-02 update with graivity effect by tsh73 from JB forum
' 2020-08-11 modified for xpanding and contracting screen size
' 2020-08-11 Steve catches memory leak, fixed!
' 2020-08-12 manstersoft gives me idea for Font 8, added more works and switched color to more! RGB32
' 2022-07-04 mods for The Forth
Const nR = 9, t = " Celebrating July 4th, 2022 at QB64 PE Forum, ASCII Fireworks Brought To You By Bplus Inspired by Pete, TempodiBasic and Code Hunter Recent Efforts, Gravity Effect by tsh73 at JB Forum, Thanks Steve for saving memory and manstersoft for Font 8 idea, Let Freedom Ring!....."
Type rocket
x As Single
y As Single
bang As Integer
age As Integer
c As _Unsigned Long
End Type
Dim Shared r(1 To nR) As rocket
For i = 1 To nR
new i
Next
Dim Shared fire&
fire& = _NewImage(640, 400, 32)
_ScreenMove 0, 0
Dim tmp&(0 To 10)
lastt = 20
sc& = _NewImage(640, 350, 32)
_Font 8
Do
_Dest fire&
_Font 16
Cls
Color &HFFFF88AA
lc = lc + 1
If lc Mod 3 = 0 Then p = (p + 1) Mod Len(t)
Locate 2, 20: Print Mid$(t, p + 1, 40);
_Font 8
rocs = rocs + 1
If rocs > nR Then rocs = nR
For i = 1 To rocs
drawRocket i
Next
_Dest 0
While _MouseInput
scroll = scroll + _MouseWheel
Wend
If scroll < 800 And scroll > -400 And .56 * scroll < _DesktopHeight Then
tp = (tp + 1) Mod 10
tmp&(tp) = _NewImage(640 + scroll, 358 + .56 * scroll, 32)
Screen tmp&(tp)
_PutImage , fire&, 0
Else
lastt = 20
End If
'debug
'COLOR qb(15)
'LOCATE 1, 1: PRINT lastt, tp, scroll
If lastt <> 20 Then _FreeImage tmp&(lastt)
lastt = tp
_Display
_Limit 20
Loop Until _KeyDown(27)
Sub new (i)
r(i).x = Rnd * 60 + 10
r(i).y = 50
r(i).bang = Rnd * 30
r(i).age = 0
r(i).c = _RGB32(200 * Rnd + 55, 200 * Rnd + 55, 200 * Rnd + 55)
End Sub
Sub drawRocket (i)
If r(i).y > r(i).bang Then
Color r(i).c
Locate r(i).y, r(i).x: Print Chr$(24);
r(i).y = r(i).y - 1
Else
r(i).age = r(i).age + 1
If r(i).age > 50 Then
new i
Else
Color r(i).c
If r(i).age > 4 Then start = r(i).age - 4 Else start = 1
For a = start To r(i).age
For j = 1 To 12
xx = r(i).x + 1 * a * Cos(j * _Pi / 6)
yy = r(i).y + .5 * a * Sin(j * _Pi / 6)
yy = yy + (r(i).y - a) ^ 2 / 15 '<<<< tsh73 gravity
If xx > 0 And xx < 81 And yy > 0 And yy < 51 Then
Locate Int(yy), Int(xx)
Print "*";
End If
Next
Next
End If
End If
End Sub
RE: Screen Savers - Kernelpanic - 07-04-2022
Nice @bplus, but what is a screensaver without the right background music?
Note the women how they wielding the swords. . . from 01:27 (Corrected!)
Kazachka
RE: Screen Savers - bplus - 07-04-2022
Yeah, they swing a mean sword or 2 that's for sure but can they code in QB64? ;-))
RE: Screen Savers - Kernelpanic - 07-05-2022
(07-04-2022, 09:54 PM)bplus Wrote: Yeah, they swing a mean sword or 2 that's for sure but can they code in QB64? ;-))
I don't know, (Corrected: 01:27) but this scene should one be incorporated into a screensaver. So incorporate the scene as a video. Is that possible with QB64?
I once had a program with which one could isolate video sequences. . . Let's see.
PS: In "Fireworks" that would fit well. The video should appear and disappear erratically.
RE: Screen Savers - bplus - 07-19-2022
Another Golden Oldie from bplus collection:

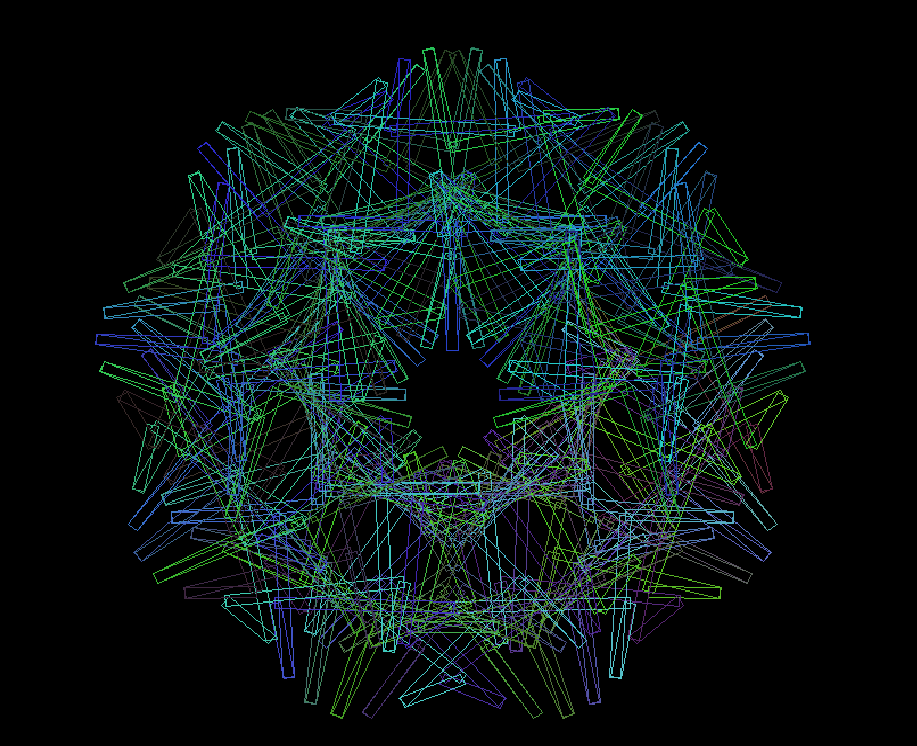

Morph Curve
Code: (Select All) _Title "Morph Curve" 'b+ 2022-07-19 trans from
' Morph Curve on Plasma.bas SmallBASIC 0.12.8 [B+=MGA] 2017-04-11
'from SpecBAS version Paul Dunn Dec 2, 2015
'https://www.youtube.com/watch?v=j2rmBRLEVms
' mods draw lines segments with drawpoly, add plasma, play with numbers
Option _Explicit
Const xmax = 1200, ymax = 700, pts = 500, interps = 30, pi = _Pi
Dim Shared plasmaR, plasmaG, plasmaB, plasmaN
Randomize Timer
Screen _NewImage(xmax, ymax, 32)
_FullScreen
Dim p(pts + 1, 1), q(pts + 1, 1), s(pts + 1, 1), i(interps)
Dim As Long L, c, j
Dim As Single cx, cy, sc, st, n, m, t, lastx, lasty
L = 0: cx = xmax / 2: cy = ymax / 2: sc = cy * .5: st = 2 * pi / pts
For n = 1 To interps
i(n) = Sin(n / interps * (pi / 2))
Next
While _KeyDown(27) = 0
resetPlasma
n = Int(Rnd * 75) + 2: m = Int(Rnd * 500) - 250: c = 0
For t = 0 To 2 * pi Step st
If _KeyDown(27) Then System
q(c, 0) = cx + sc * (Cos(t) + Cos(n * t) / 2 + Sin(m * t) / 3)
q(c, 1) = cy + sc * (Sin(t) + Sin(n * t) / 2 + Cos(m * t) / 3)
setPlasma
If t > 0 Then pline lastx, lasty, q(c, 0), q(c, 1), 10
lastx = q(c, 0): lasty = q(c, 1)
c = c + 1
Next
q(c, 0) = q(0, 0): q(c, 1) = q(0, 1)
If L = 0 Then
L = L + 1
_Display
_Limit 30
Else
For t = 1 To interps
Cls
For n = 0 To pts
If _KeyDown(27) Then System
s(n, 0) = q(n, 0) * i(t) + p(n, 0) * (1 - i(t))
s(n, 1) = q(n, 1) * i(t) + p(n, 1) * (1 - i(t))
setPlasma
If n > 0 Then pline lastx, lasty, s(n, 0), s(n, 1), 10
lastx = s(n, 0): lasty = s(n, 1)
Next
s(n, 0) = s(0, 0)
s(n, 1) = s(0, 1)
_Display
_Limit 30
Next
End If
For j = 0 To pts + 1 'copy q into p
If _KeyDown(27) Then System
p(j, 0) = q(j, 0)
p(j, 1) = q(j, 1)
Next
_Display
_Delay 4
Wend
'fast thick line!!!
Sub pline (x1, y1, x2, y2, thick) 'this draws a little rectangle
Dim r, dx, dy, perpA1, perpA2, x3, y3, x4, y4, x5, y5, x6, y6
r = thick / 2
dx = x2 - x1
dy = y2 - y1
perpA1 = _Atan2(dy, dx) + pi / 2
perpA2 = perpA1 - pi
x3 = x1 + r * Cos(perpA1) 'corner 1
y3 = y1 + r * Sin(perpA1)
x4 = x2 + r * Cos(perpA1) 'corner 2
y4 = y2 + r * Sin(perpA1)
x5 = x2 + r * Cos(perpA2) 'corner 3
y5 = y2 + r * Sin(perpA2)
x6 = x1 + r * Cos(perpA2) 'corner 4
y6 = y1 + r * Sin(perpA2)
Line (x3, y3)-(x4, y4)
Line (x4, y4)-(x5, y5)
Line (x5, y5)-(x6, y6)
Line (x6, y6)-(x3, y3)
End Sub
Sub resetPlasma () 'all globals
plasmaR = Rnd ^ 2: plasmaG = Rnd ^ 2: plasmaB = Rnd ^ 2: plasmaN = 0
End Sub
Sub setPlasma () 'all globals
plasmaN = plasmaN + .37
Color _RGB32(120 + 84 * Sin(plasmaR * plasmaN), 120 + 84 * Sin(plasmaG * plasmaN), 120 + 84 * Sin(plasmaB * plasmaN))
End Sub
QBJS Share: https://qbjs.org/?code=X1RpdGxlICJNb3JwaCBDdXJ2ZSIgJ2IrIDIwMjItMDctMTkgdHJhbnMgZnJvbQonIMspIG9uIFBsYXNtYS5iYXMgIFNtYWxsQkFTSUMgMC4xMi44IFtCKz1NR0FdIDIwMTctMDQtMTEKJ8RJIFNwZWNCQVMgdmVyc2nESGF1bCBEdW5uIERlYyAyLMQyNQonaHR0cHM6Ly93d3cueW91dHViZS5jb20vd2F0Y2g/dj1qMnJtQlJMRVZtcwonIG1vZHMgZHJhdyBsaW5lcyBzZWdtZW50cyB3aXRoxRlwb2x5LCBhZGQgcOUAuSzECHnGIG51bWJlcnMKCk9wdOQAk19FeHBsaWNpdApDb25zdCB4bWF4ID0gMTIwMCwgecYNN8QMcHRzID0gNcQLaW50ZXJwxA8zxBlpID0gX1BpCkRpbSBTaGFyZch4UsV5c21hR8gJQsgJTgpSYW5kb21pemUgVGltZXIKU2NyZWVuIF9OZXdJbWFnZSjkAIrmAIMsIDMyKQpfRnVsbMYmCsVscCjkAJQrIDEsIDEpLCBxzg9zzg9pKOcAtinFPEFzIExvbmcgTCwgYywgasgUU2luZ2xlIGN4LCBjeSwgc2MsIHN0LCBuLCBtLCB0LCBsYXN0eMYHeQpMID0gMDogY+QBI+UBNy8gMjogY3kgPeYBOcUPc2MgPcQUKiAuNTogc3QgPSAyICrkATUv5AFTCkZvciBu5AFxIFRv6AFZCiAgICBpKG4pID3kAJIobiAvyBsgKiAoxTwyKSkKTmV4dApXaGlsZSBfS2V5RG93bigyN8Q2MMVDcmVzZXTmArzFEMRoSW50KFJuZCAqIDc1KSAr5ACjbc0XNTAwKSAtIDI15ADbyUvkAKfkALww5ACn5wDBU3RlcCBzdMUgxAFJZu4Ah1RoZW4gU3lzdGVtySRxKGMsIDDkAKNjeCAr5AEeKiAoQ29zKHTkAI3ECW4gKiB0KeQA4iAr5QD+bcgRMynORzHFR3nJR8QtxUfECc1HxFjUR+4BH+cAxHQgPuQA5+QAvXDkA2LtAfXkAmflAMLHCeQCWzHmASPEAcUrID3IJTrGNcgRMcp65QIW5AKexRLlAcnuAR9xKDDGQsc6yBPHRElmIOUCf+UAqMlWxBNMyVbEAV9EaXPkA/3KEUxpbWl0IDPmALRFbHNlyRvoAeTxAovIAUNszhDoArzlAhXkAs3MHecApv8CEsoBcyhu6QD7xgoqIGnmAdBwyREoMSAtxRbqAUrNQOcBKMYKzkDFEdxA8QIMyAFJZiBu/gIUxXzkAhTFCe8CFMgB6AIcxy3qAhzHNc0x6QISyAHHNsUv5QIa0h7lAP3FHs9N8QIFxRXtAgnNdEVuZCBJZukD+GrrAePkAl0gJ2NvcHkgceQCJG8gcP8EAO4B7nAoaukB5sUKzhrnAcDFCu4DGu0AxF9EZeQG0TQKV2VuZAoKJ2Zhc3QgdGhpY2vlBxQhISEKU3Vi5wGrKHgxLCB5MSwgeDIsIHkyLMYpKSAndGhp5gdJcyBhIGxpdOQII3JlY3Rh5AYExWjkBhZyLCBkeCwgZHksIHBlcnBBMccIMiwgeDMsIHkzLCB4NCwgeTQsIHg1LCB5NSwgeDYsIHk2CsVDciA9xnHkBIvFEmTlBjAyIC0geOYDqGTlBjLEEXnGEcZo5AdWQXRhbjIoxHxkeOUCyuUF+8olMiA9yC4tIHBpxRl4M8RgMSArIHIgKuUE+8YiKeQBuHJuZXLnBB95xCh5yCjkBTTHKMZGNMRG5AU92EbmAId5xCh5yCjRRjXVRjLKRjPGRsQo0kYyx0Y29QDSy0Y0xkbEKPIA0sdGTOYCDeUBtCktKOYBtc0bxhItKOYByM0bxhItKOYB280bxhItyFoK5AM+U3ViCuUCg+sHgyAoKSAnYWxsIGdsb2Jh5wVL5wkpID0g5Ad+XuQHj8YTR9ITQtITTuUHoc1y33DJN8gKKyAuMzfFHENvbG9yIF9SR0IzMigxMjAgKyA4NOgBScUuUuQH+cY45ATk1CNH3yPlAMjKI+kBLw==
Some of these actually look better in QBJS, lines are so skinny.
RE: Screen Savers - bplus - 08-28-2022

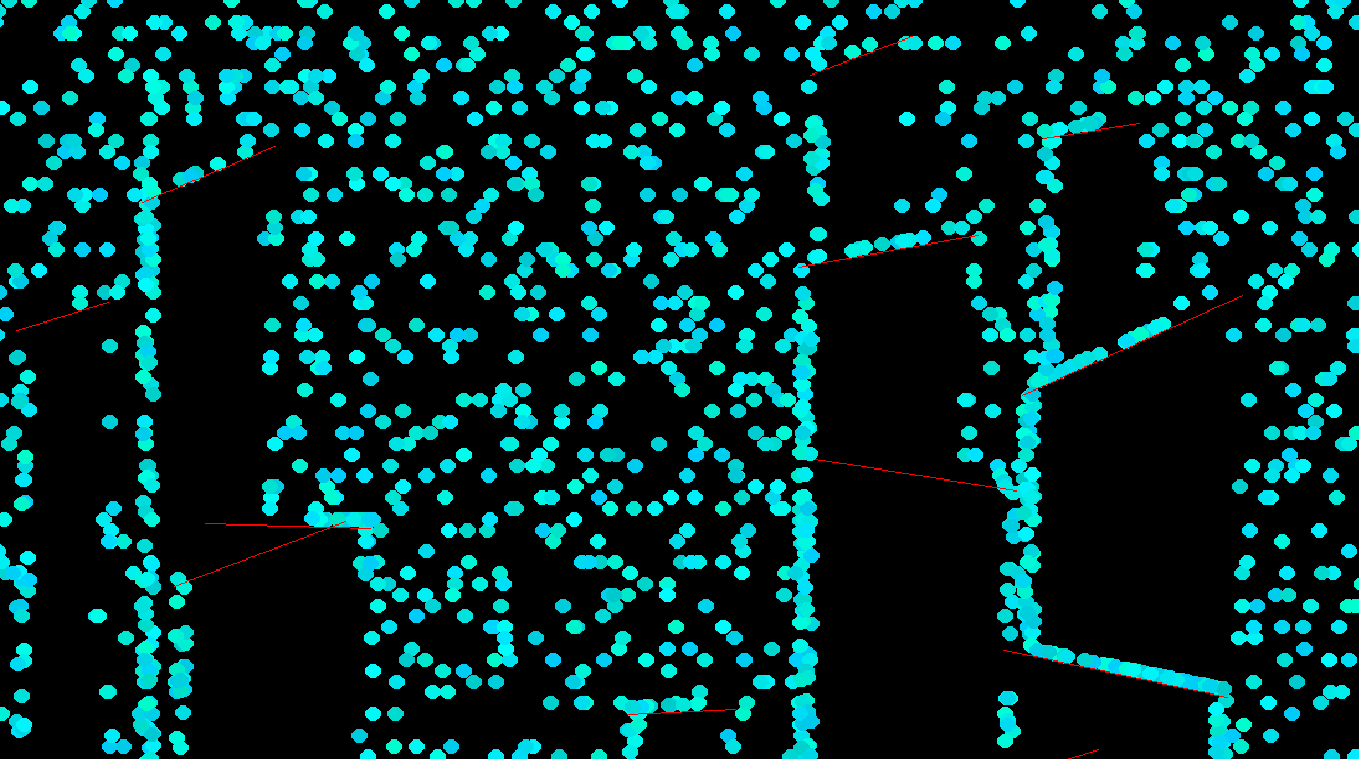

Rain Drain
Code: (Select All) 'Rain Drain.bas started 2017-09-13
'translated from
'Rain Drain.bas SmallBASIC 0.12.9 [B+=MGA] 2017-04-26
' 2020-08-29 Rain Drain 2: What if we move one side of every line up and down?
_Define A-Z As SINGLE
Randomize Timer
Const xmax = 1100
Const ymax = 700
Screen _NewImage(xmax, ymax, 32)
_FullScreen
_Title "Rain Drain 2: spacebar for new arrangement, esc to quit"
Type ball
x As Single
y As Single
speed As Single
r As Single
c As Long
End Type
Type bLine
x1 As Single
y1 As Single
x2 As Single
y2 As Single
a As Double
End Type
While _KeyDown(27) = 0
balls = 1500
ReDim b(balls) As ball
For i = 1 To balls
b(i).x = Rnd * xmax
b(i).y = Rnd * ymax
b(i).speed = 9.85
b(i).r = 6
b(i).c = _RGB(0, rand%(200, 255), rand%(200, 255))
Next
m = 10
nbl = 12
ReDim bl(nbl) As bLine
For i = 1 To nbl
d = rand%(50, 200)
bl(i).x1 = rand%(m, xmax - d - m)
bl(i).y1 = i * ymax / nbl - 10
bl(i).a = Rnd * _Pi(1 / 4) - _Pi(1 / 8)
bl(i).x2 = bl(i).x1 + d * Cos(bl(i).a)
bl(i).y2 = bl(i).y1 + d * Sin(bl(i).a)
Next
dir = .5: lp = 0
While 1
Cls
If 32 = _KeyHit Then
Exit While
ElseIf 27 = _KeyHit Then
End
End If
lp = lp + dir
If lp > 50 Then dir = -dir
If lp < -50 Then dir = -dir
For j = 1 To balls
If b(j).y - b(j).r > ymax Or b(j).x + b(j).r < 0 Or b(j).x - b(j).r > xmax Then
b(j).x = rand%(0, xmax): b(j).y = 0
End If
fcirc b(j).x, b(j).y, b(j).r, b(j).c
testx = b(j).x + b(j).speed * Cos(_Pi(.5))
testy = b(j).y + b(j).speed * Sin(_Pi(.5))
cFlag = 0
For i = 1 To nbl
Color _RGB(255, 0, 0)
If j = 1 Then bl(i).y1 = bl(i).y1 + dir
Line (bl(i).x1, bl(i).y1)-(bl(i).x2, bl(i).y2)
If cFlag = 0 Then
If hitLine(testx, testy, b(j).r, bl(i).x1, bl(i).y1, bl(i).x2, bl(i).y2) Then
bx1 = b(j).x + b(j).speed * Cos(bl(i).a)
bx2 = b(j).x + b(j).speed * Cos(_Pi(1) - bl(i).a)
by1 = yy(bx1, bl(i).x1, bl(i).y1, bl(i).x2, bl(i).y2) - b(j).r - 1
by2 = yy(bx2, bl(i).x1, bl(i).y1, bl(i).x2, bl(i).y2) - b(j).r - 1
If by1 = (-9999 - b(j).r - 1) Or by2 = (-9999 - b(j).r - 1) Then
cFlag = 0: Exit For
End If
If by1 >= by2 Then b(j).y = by1: b(j).x = bx1 Else b(j).y = by2: b(j).x = bx2
cFlag = 1
End If
End If
Next
If cFlag = 0 Then b(j).x = testx: b(j).y = testy
Next
_Limit 20
_Display
Wend
Wend
Function hitLine (x, y, r, xx1, yy1, xx2, yy2)
x1 = xx1: y1 = yy1: x2 = xx2: y2 = yy2
If x1 > x2 Then Swap x1, x2: Swap y1, y2
If x < x1 Or x > x2 Then hitLine = 0: Exit Function
If ((y2 - y1) / (x2 - x1)) * (x - x1) + y1 - r < y And y < ((y2 - y1) / (x2 - x1)) * (x - x1) + y1 + r Then
hitLine = 1
Else
hitLine = 0
End If
End Function
Function yy (x, xx1, yy1, xx2, yy2) 'this puts drop on line
'copy parameters that are changed
x1 = xx1: y1 = yy1: x2 = xx2: y2 = yy2
If x1 > x2 Then Swap x1, x2: Swap y1, y2
If x1 <= x And x <= x2 Then
yy = ((y2 - y1) / (x2 - x1)) * (x - x1) + y1
Else
yy = -9999
End If
End Function
Function rand% (lo%, hi%)
rand% = (Rnd * (hi% - lo% + 1)) \ 1 + lo%
End Function
Sub fcirc (CX As Integer, CY As Integer, R As Integer, C As _Unsigned Long)
Dim Radius As Integer, RadiusError As Integer
Dim X As Integer, Y As Integer
Radius = Abs(R): RadiusError = -Radius: X = Radius: Y = 0
If Radius = 0 Then PSet (CX, CY), C: Exit Sub
Line (CX - X, CY)-(CX + X, CY), C, BF
While X > Y
RadiusError = RadiusError + Y * 2 + 1
If RadiusError >= 0 Then
If X <> Y + 1 Then
Line (CX - Y, CY - X)-(CX + Y, CY - X), C, BF
Line (CX - Y, CY + X)-(CX + Y, CY + X), C, BF
End If
X = X - 1
RadiusError = RadiusError - X * 2
End If
Y = Y + 1
Line (CX - X, CY - Y)-(CX + X, CY - Y), C, BF
Line (CX - X, CY + Y)-(CX + X, CY + Y), C, BF
Wend
End Sub
RE: Screen Savers - TempodiBasic - 08-29-2022
Hi boys,
@ thanks for sharing your interesting and beautyful demos
moreover I thank you for letting me meet QBJS that I didn't know
Happy coding
RE: Screen Savers - bplus - 09-06-2022
Alien Trees Mod 3
Code: (Select All) _Title "Alien Trees Mod 3: Leaves" 'b+ 2022-09-05
Randomize Timer
DefDbl A-Z
Const xmax = 1024, ymax = 600
Type ship
As Double x, y, dx, dy, scale, tilt
End Type
Screen _NewImage(xmax, ymax, 32)
_ScreenMove 170, 40 ' clear sides
_FullScreen
Randomize Timer
Dim Shared As Long bk ' background image
bk = _NewImage(xmax, ymax, 32) 'container for drawings
Dim Shared As Long seed(1 To 3), start, cN ' Randomize seeds for trees and plasma starters
Dim Shared As Single rd(1 To 3), gn(1 To 3), bl(1 To 3) ' plasma colors for trees
Dim Shared leaf ' indexing ends of branches
ref& = _NewImage(xmax, ymax * .2, 32) 'container for reflection image
Dim Shared ships(448) As ship ' ships / leaves
Dim Shared leaves(448) As Long ' ship images
makeShips ' just do this once for images and travel rates
restart:
makeBackground
seed(1) = Rnd * 1000 ' get new trees setup including the Plasma generators
seed(2) = Rnd * 1000
seed(3) = Rnd * 1000
For i = 1 To 3
rd(i) = Rnd * Rnd
gn(i) = Rnd * Rnd
bl(i) = Rnd * Rnd
Next
leaf = 0
start = 0
cN = start
Randomize Using seed(1)
branch xmax * .6 + Rnd * .3 * xmax, ymax * .8 - 30, 6, 90, xmax / 20, 0, 1, 1
cN = start
Randomize Using seed(2)
branch Rnd * .3 * xmax, ymax * .8 - 15, 7, 90, xmax / 18, 0, 2, 1
cN = start
Randomize Using seed(3)
branch xmax / 2, ymax * .8 - 8, 8, 90, xmax / 16, 0, 3, 1
start = 0: d = 1300: ds = 5 ' start the show! press spacebar to start a different setting
Do
_PutImage , bk, 0
start = start + 1
cN = start
Randomize Using seed(1)
branch xmax * .6 + Rnd * .3 * xmax, ymax * .8 - 30, 6, 90, xmax / 20, 0, 1, 0
cN = start
Randomize Using seed(2)
branch Rnd * .3 * xmax, ymax * .8 - 15, 7, 90, xmax / 18, 0, 2, 0
cN = start
Randomize Using seed(3)
branch xmax / 2, ymax * .8 - 8, 8, 90, xmax / 16, 0, 3, 0
For i = 448 To 1 Step -1
RotoZoom ships(i).x + d * ships(i).dx, ships(i).y + d * ships(i).dy, leaves(i), ships(i).scale, 0
Next
d = d + ds
If d > 1300 Then ds = -3: d = 1300
If d < 0 Then ds = 7: d = 0: _Delay 2
If _KeyDown(32) Then GoTo restart
_PutImage , 0, ref&, (0, 0)-(xmax, .8 * ymax)
_PutImage (0, .8 * ymax)-(xmax, ymax), ref&, 0, (0, _Height(ref&))-(xmax, 0)
_Display
_Limit 30
Loop Until _KeyDown(27)
Sub makeShips
cN = 0
rd(1) = Rnd
gn(1) = Rnd
bl(1) = Rnd
For i = 0 To 448
leaves(i) = _NewImage(61, 31, 32) ' ship is 60 x 30 drawn in top left hand corner
' need black backgrounf for ship
Color , &HFF000000 '= balck background
Cls
drawShip 30, 15, changePlasma(1)
_PutImage , 0, leaves(i), (0, 0)-(61, 31) ' <<<< upper left corner of screen!!!
' make the background black of ship transparent
_ClearColor &HFF000000, leaves(i)
a = _Pi(2) * Rnd
ships(i).dx = Cos(a)
ships(i).dy = Sin(a)
Next
End Sub
Sub makeBackground
_Dest bk
For i = 0 To ymax
Line (0, i)-(xmax, i), _RGB32(70, 60, i / ymax * 160)
Next
stars = xmax * ymax * 10 ^ -4
horizon = .67 * ymax
For i = 1 To stars 'stars in sky
PSet (Rnd * xmax, Rnd * horizon), _RGB32(175 + Rnd * 80, 175 + Rnd * 80, 175 + Rnd * 80)
Next
stars = stars / 2
For i = 1 To stars
fcirc Rnd * xmax, Rnd * horizon, 1, _RGB32(175 + Rnd * 80, 175 + Rnd * 80, 175 + Rnd * 80)
Next
stars = stars / 2
For i = 1 To stars
fcirc Rnd * xmax, Rnd * horizon, 2, _RGB32(175 + Rnd * 80, 175 + Rnd * 80, 175 + Rnd * 80)
Next
DrawTerrain 405, 25, &HFF002255
DrawTerrain 420, 15, &HFF224444
DrawTerrain 435, 6, &HFF448855
DrawTerrain 450, 5, &HFF88FF66
_Dest 0
End Sub
Sub branch (x, y, startr, angD, lngth, lev, tree, leafTF)
x2 = x + Cos(_D2R(angD)) * lngth
y2 = y - Sin(_D2R(angD)) * lngth
dx = (x2 - x) / lngth
dy = (y2 - y) / lngth
For i = 0 To lngth
fcirc x + dx * i, y + dy * i, startr, changePlasma~&(tree)
Next
If startr <= 0 Or lev > 11 Or lngth < 5 Then
If leafTF Then
'fcirc x + dx * i, y + dy * i, 5, &HFF008800
leaf = leaf + 1
ships(leaf).x = x + dx * i
ships(leaf).y = y + dy * i
ships(leaf).scale = .5 - (4 - tree) * .075
End If
Exit Sub
Else
lev2 = lev + 1
branch x2, y2, startr - 1, angD + 10 + 30 * Rnd, .8 * lngth + .2 * Rnd * lngth, lev2, tree, leafTF
branch x2, y2, startr - 1, angD - 10 - 30 * Rnd, .8 * lngth + .2 * Rnd * lngth, lev2, tree, leafTF
End If
End Sub
Sub fcirc (CX As Long, CY As Long, R As Long, C As _Unsigned Long)
Dim Radius As Long, RadiusError As Long
Dim X As Long, Y As Long
Radius = Abs(R): RadiusError = -Radius: X = Radius: Y = 0
If Radius = 0 Then PSet (CX, CY), C: Exit Sub
Line (CX - X, CY)-(CX + X, CY), C, BF
While X > Y
RadiusError = RadiusError + Y * 2 + 1
If RadiusError >= 0 Then
If X <> Y + 1 Then
Line (CX - Y, CY - X)-(CX + Y, CY - X), C, BF
Line (CX - Y, CY + X)-(CX + Y, CY + X), C, BF
End If
X = X - 1
RadiusError = RadiusError - X * 2
End If
Y = Y + 1
Line (CX - X, CY - Y)-(CX + X, CY - Y), C, BF
Line (CX - X, CY + Y)-(CX + X, CY + Y), C, BF
Wend
End Sub
Function changePlasma~& (n)
cN = cN - 1 'dim shared cN as _Integer64, pR as long, pG as long, pB as long
changePlasma~& = _RGB32(127 + 127 * Sin(rd(n) * cN), 127 + 127 * Sin(gn(n) * cN), 127 + 127 * Sin(bl(n) * cN))
End Function
Sub drawShip (x, y, colr As _Unsigned Long) 'shipType collisions same as circle x, y radius = 30
Static ls
Dim light As Long, r As Long, g As Long, b As Long
r = _Red32(colr): g = _Green32(colr): b = _Blue32(colr)
fellipse x, y, 6, 15, _RGB32(r, g - 120, b - 100)
fellipse x, y, 18, 11, _RGB32(r, g - 60, b - 50)
fellipse x, y, 30, 7, _RGB32(r, g, b)
For light = 0 To 5
fcirc x - 30 + 11 * light + ls, y, 1, _RGB32(ls * 50, ls * 50, ls * 50)
Next
ls = ls + 1
If ls > 5 Then ls = 0
End Sub
' ======== helper subs for drawShip that you can use for other things specially fcirc = fill_circle x, y, radius, color
Sub fellipse (CX As Long, CY As Long, xr As Long, yr As Long, C As _Unsigned Long)
If xr = 0 Or yr = 0 Then Exit Sub
Dim h2 As _Integer64, w2 As _Integer64, h2w2 As _Integer64
Dim x As Long, y As Long
w2 = xr * xr: h2 = yr * yr: h2w2 = h2 * w2
Line (CX - xr, CY)-(CX + xr, CY), C, BF
Do While y < yr
y = y + 1
x = Sqr((h2w2 - y * y * w2) \ h2)
Line (CX - x, CY + y)-(CX + x, CY + y), C, BF
Line (CX - x, CY - y)-(CX + x, CY - y), C, BF
Loop
End Sub
Sub DrawTerrain (h, modN, c As _Unsigned Long) ' modN for ruggedness the higher the less smooth
For x = 0 To _Width
If x Mod modN = 0 Then ' adjust mod number for ruggedness the higher the number the more jagged
If h < 600 - modN And h > 50 + modN Then
dy = Rnd * 20 - 10
ElseIf h >= 600 - modN Then
dy = Rnd * -10
ElseIf h <= 50 + modN Then
dy = Rnd * 10
End If
End If
h = h + .1 * dy
Line (x, _Height)-(x, h), c
Next
End Sub
Sub RotoZoom (X As Long, Y As Long, Image As Long, Scale As Double, degreesRotation As Double)
Dim px(3) As Single, py(3) As Single, W&, H&, sinr!, cosr!, i&, x2&, y2&
W& = _Width(Image&): H& = _Height(Image&)
px(0) = -W& / 2: py(0) = -H& / 2: px(1) = -W& / 2: py(1) = H& / 2
px(2) = W& / 2: py(2) = H& / 2: px(3) = W& / 2: py(3) = -H& / 2
sinr! = Sin(-degreesRotation / 57.2957795131): cosr! = Cos(-degreesRotation / 57.2957795131)
For i& = 0 To 3
x2& = (px(i&) * cosr! + sinr! * py(i&)) * Scale + X: y2& = (py(i&) * cosr! - px(i&) * sinr!) * Scale + Y
px(i&) = x2&: py(i&) = y2&
Next
_MapTriangle (0, 0)-(0, H& - 1)-(W& - 1, H& - 1), Image& To(px(0), py(0))-(px(1), py(1))-(px(2), py(2))
_MapTriangle (0, 0)-(W& - 1, 0)-(W& - 1, H& - 1), Image& To(px(0), py(0))-(px(3), py(3))-(px(2), py(2))
End Sub
|
