GUI app and winAPI calls
#32
Just try to compile code and tell me why not exists even is customtype?

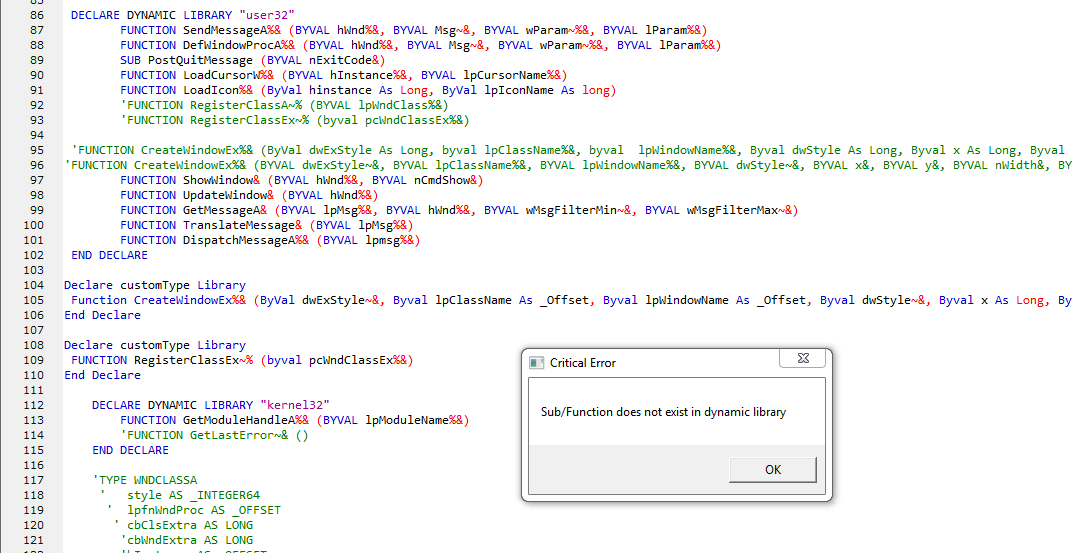

it compile ..but when i run it ..i get error ?

Code: (Select All)
'test 1 GUI win32 api in QB64pe v3.2.1 by Aurel
$SCREENHIDE
CONST IDC_ARROW = &H7F00
    CONST COLOR_WINDOW = 5

    CONST WS_OVERLAPPED = 0
    CONST WS_CHILD = &H40000000
    CONST WS_VISIBLE = &H10000000
    CONST WS_MAXIMIZE = &H01000000
    CONST WS_CAPTION = &H00C00000
    CONST WS_VSCROLL = &H00200000
    CONST WS_HSCROLL = &H00100000
    CONST WS_SYSMENU = &H00080000
    CONST WS_THICKFRAME = &H00040000
    CONST WS_TABSTOP = &H00010000
    CONST WS_MINIMIZEBOX = &H00020000
    CONST WS_MAXIMIZEBOX = &H00010000
    CONST WS_OVERLAPPEDWINDOW = WS_VISIBLE OR WS_OVERLAPPED OR WS_CAPTION OR WS_SYSMENU OR WS_THICKFRAME OR WS_MINIMIZEBOX OR WS_MAXIMIZEBOX

    CONST CW_USEDEFAULT = &H80000000

    CONST CS_DBLCLKS      = &H8
    CONST CS_OWNDC        = 32
    CONST IDI_APPLICATION = 32512

    CONST BS_PUSHBUTTON = 0
    CONST BS_AUTOCHECKBOX = 3
    CONST BS_GROUPBOX = 7
    CONST BS_AUTORADIOBUTTON = 9
    CONST BS_TEXT = 0

    CONST BN_CLICKED = 0

    CONST BM_GETCHECK = &HF0

    CONST ES_LEFT = 0
    CONST ES_MULTILINE = 4
    CONST ES_AUTOVSCROLL = &H0040
    CONST ES_AUTOHSCROLL = &H0080
    CONST ES_WANTRETURN = &H1000

    CONST WM_DESTROY = 2
    CONST WM_GETTEXT = &H000D
    CONST WM_CLOSE = &H0010
    CONST WM_COMMAND = &H0111

    CONST SW_SHOWDEFAULT = &HA
    CONST SW_SHOW        = 5
'------------------------------------------------
  TYPE POINT
       x AS LONG
       y AS LONG
  END TYPE

' for 64 bit
     TYPE MSG
        hwnd     AS _OFFSET
        message  AS _OFFSET
        wParam   AS _UNSIGNED _OFFSET  'unsigned pointer sized integer
        lParam   AS _OFFSET            'pointer sized integer
        time     AS _INTEGER64
        pt       AS POINT
    END TYPE

'should be before Library Declarations
TYPE WNDCLASSEX
       cbSize         As _INTEGER64
       Style          As LONG
       lpfnwndproc    As _OFFSET
       cbClsextra     As LONG
       cbWndExtra     As LONG
       hInstance      As _OFFSET
       hIcon          As _OFFSET
       hCursor        As _OFFSET
       hbrBackground  As _OFFSET
       lpszMenuName   As _OFFSET
       lpszClassName  As _OFFSET
       hIconSm        As _OFFSET
   END TYPE


    DECLARE LIBRARY "win"
        FUNCTION GetWindowProc%& ()
    END DECLARE

DECLARE DYNAMIC LIBRARY "user32"
        FUNCTION SendMessageA%& (BYVAL hWnd%&, BYVAL Msg~&, BYVAL wParam~%&, BYVAL lParam%&)
        FUNCTION DefWindowProcA%& (BYVAL hWnd%&, BYVAL Msg~&, BYVAL wParam~%&, BYVAL lParam%&)
        SUB PostQuitMessage (BYVAL nExitCode&)
        FUNCTION LoadCursorW%& (BYVAL hInstance%&, BYVAL lpCursorName%&)
        FUNCTION LoadIcon%& (ByVal hinstance As Long, ByVal lpIconName As long)
        'FUNCTION RegisterClassA~% (BYVAL lpWndClass%&)
        'FUNCTION RegisterClassEx~% (byval pcWndClassEx%&)

'FUNCTION CreateWindowEx%& (ByVal dwExStyle As Long, byval lpClassName%&, byval  lpWindowName%&, Byval dwStyle As Long, Byval x As Long, Byval y As Long, Byval nWidth As Long, Byval nHeight As Long, Byval hWndParent As Long, Byval hMenu As Long, Byval hInstance As _OFFSET, Byval lpParam As Long )
'FUNCTION CreateWindowEx%& (BYVAL dwExStyle~&, BYVAL lpClassName%&, BYVAL lpWindowName%&, BYVAL dwStyle~&, BYVAL x&, BYVAL y&, BYVAL nWidth&, BYVAL nHeight&, BYVAL hWndParent%&, BYVAL hMenu%&, BYVAL hInstance%&, BYVAL lpParam%&)
        FUNCTION ShowWindow& (BYVAL hWnd%&, BYVAL nCmdShow&)
        FUNCTION UpdateWindow& (BYVAL hWnd%&)
        FUNCTION GetMessageA& (BYVAL lpMsg%&, BYVAL hWnd%&, BYVAL wMsgFilterMin~&, BYVAL wMsgFilterMax~&)
        FUNCTION TranslateMessage& (BYVAL lpMsg%&)
        FUNCTION DispatchMessageA%& (BYVAL lpmsg%&)
END DECLARE

Declare customType Library
Function CreateWindowEx%& (ByVal dwExStyle~&, Byval lpClassName As _Offset, Byval lpWindowName As _Offset, Byval dwStyle~&, Byval x As Long, Byval y As Long, Byval nWidth As Long, Byval nHeight As Long, Byval hWndParent As _Offset, Byval hMenu As _Offset, Byval hInstance As _Offset, Byval lpParam As _Offset)
End Declare

Declare customType Library
FUNCTION RegisterClassEx~% (byval pcWndClassEx%&)
End Declare

    DECLARE DYNAMIC LIBRARY "kernel32"
        FUNCTION GetModuleHandleA%& (BYVAL lpModuleName%&)
        'FUNCTION GetLastError~& ()
    END DECLARE

    'TYPE WNDCLASSA
     '   style AS _INTEGER64
      '  lpfnWndProc AS _OFFSET
       ' cbClsExtra AS LONG
        'cbWndExtra AS LONG
        'hInstance AS _OFFSET
        'hIcon AS _OFFSET
        'hCursor AS _OFFSET
        'hbrBackground AS _OFFSET
        'lpszMenuName AS _OFFSET
        'lpszClassName AS _OFFSET
    'END TYPE

    DIM SHARED hi AS _OFFSET
    DIM SHARED bRet AS LONG
    DIM SHARED hw AS _offset
    DIM SHARED hwb0 AS _OFFSET
    DIM SHARED hwb1 AS _OFFSET
    DIM SHARED hwcb AS _OFFSET
    DIM SHARED hwgb AS _OFFSET
    DIM SHARED hwr0 AS _OFFSET
    DIM SHARED hwr1 AS _OFFSET
    DIM SHARED hwe AS _OFFSET
    DIM SHARED wcx AS WNDCLASSEX
    DIM SHARED wmsg AS MSG
    DIM SHARED reg AS _UNSIGNED INTEGER

    DIM SHARED buf AS STRING * 4096

    DIM SHARED sw AS LONG
    DIM SHARED uw AS _OFFSET
    DIM SHARED t0 AS STRING
    DIM SHARED t1 AS STRING

    DIM SHARED ClassName AS STRING
    ClassName = "QB64pe"
    'DIM SHARED crlf AS STRING * 2
    'crlf = MKI$(&HA0D)

    hi = GetModuleHandleA(0)
    wcx.cbsize = 76
    wcx.style = CS_DBLCLKS OR CS_OWNDC
    wcx.lpfnWndProc = GetWindowProc
    wcx.cbClsExtra = 0
    wcx.cbWndExtra = 0
    wcx.hInstance = hi
    wcx.hIcon = 0
    wcx.hCursor = LoadCursorW(0, IDC_ARROW)
    wcx.hbrBackground = COLOR_WINDOW + 1
    wcx.lpszMenuName = 0
    wcx.lpszClassName = _OFFSET(ClassName)
    wcx.hIconSm       = LoadIcon(0,IDI_APPLICATION )
'-----------------------------------------------------------
    reg = RegisterClassEx(_OFFSET(wcx)):  IF 0 = reg THEN SYSTEM
'-------------------------------------------------------------
'create main window
t1 = "QB64pe_GUI_App2"
hw = CreateWindowEx(0, _OFFSET(ClassName), _OFFSET(t1), WS_OVERLAPPEDWINDOW , 200, 200, 800, 600, 0, 0, hi, 0)
IF 0 = hw THEN SYSTEM

sw = ShowWindow(hw, SW_SHOW)
sw = UpdateWindow(hw)

'win message loop..................................
DO
   bRet = GetMessageA(_OFFSET(wmsg), 0, 0, 0)
         SELECT CASE bRet
            CASE 0, -1: EXIT DO
         END SELECT
        sw = TranslateMessage(_OFFSET(wmsg))
        uw = DispatchMessageA(_OFFSET(wmsg))
'wend
LOOP
'..................................................

FUNCTION WindowProc%& (hWnd AS _OFFSET, uMsg AS _UNSIGNED LONG, wParam AS _UNSIGNED _OFFSET, lParam AS _OFFSET)

        SELECT CASE uMsg

            CASE WM_DESTROY
                PostQuitMessage(0)
               ' WindowProc=0 : EXIT FUNCTION

            CASE ELSE

                WindowProc = DefWindowProcA(hWnd, uMsg, wParam, lParam)
        END SELECT
       'WindowProc =  DefWindowProcA(hWnd, uMsg, wParam, lParam)

END FUNCTION



Attached Files Image(s)
