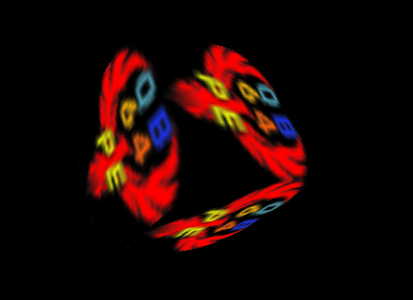

So let's throw it into space, what do you say? So here we have a 3D cube in 3D space, textured with the logo of our beloved programming language. Try commenting out some parts and then running it to see the impact to program.
Code: (Select All)
Type GL_Loader
PointerGL As Long
TextureName As String
End Type
ReDim Shared GLL(0) As GL_Loader, t As Long
Dim Shared GL_InitInfo As _Byte
Dim Shared ExitSignal As _Byte
_Title "Use texture!"
Screen _NewImage(1024, 768, 32)
Do
If ExitSignal Then System
_Limit 40
Loop
Sub _GL ()
Static Xrot, Yrot, Zrot, t
If t = 0 Then t = LoadTexture("Phoenix.png") 'function load texture from valid file and return OpenGL Handle for this texture,
' if handle exists, return it and do not next.
Init2
_glClear _GL_COLOR_BUFFER_BIT And _GL_DEPTH_BUFFER_BIT 'Clear screen and depth buffer
_glMatrixMode _GL_PROJECTION ' Set projection matrix - TRY comment this five rows and then run it. Black screen occur. For view just something then must be depth set to -1 (Z parameter in _glTranslateF)
_glLoadIdentity '();// Reset matice
_gluPerspective 90.0F, _Width / _Height, 0.1F, 100.0F ' Perspective calculation
_glMatrixMode _GL_MODELVIEW ' set modelview matrix
_glLoadIdentity
_glTranslatef 0.0F, 0.0F, -5F 'Shift to depth - without projection matrix settings if Z is -5 just black screen occur!
_glRotatef Xrot, 1.0F, 0.0F, 0.0F 'rotation in axis X
_glRotatef Yrot, 0.0F, 1.0F, 0.0F ' Y
_glRotatef Zrot, 0.0F, 0.0F, 1.0F ' Z
_glBindTexture _GL_TEXTURE_2D, t 'set texture - in this case 1 texture for whole cube
_glBegin _GL_QUADS
'Front Wall
_glTexCoord2f 0.0F, 0.0F: _glVertex3f -1.0F, -1.0F, 1.0F
_glTexCoord2f 1.0F, 0.0F: _glVertex3f 1.0F, -1.0F, 1.0F
_glTexCoord2f 1.0F, 1.0F: _glVertex3f 1.0F, 1.0F, 1.0F
_glTexCoord2f 0.0F, 1.0F: _glVertex3f -1.0F, 1.0F, 1.0F
' Rear Wall
_glTexCoord2f 1.0F, 0.0F: _glVertex3f -1.0F, -1.0F, -1.0F
_glTexCoord2f 1.0F, 1.0F: _glVertex3f -1.0F, 1.0F, -1.0F
_glTexCoord2f 0.0F, 1.0F: _glVertex3f 1.0F, 1.0F, -1.0F
_glTexCoord2f 0.0F, 0.0F: _glVertex3f 1.0F, -1.0F, -1.0F
' Upper Wall
_glTexCoord2f 0.0F, 1.0F: _glVertex3f -1.0F, 1.0F, -1.0F
_glTexCoord2f 0.0F, 0.0F: _glVertex3f -1.0F, 1.0F, 1.0F
_glTexCoord2f 1.0F, 0.0F: _glVertex3f 1.0F, 1.0F, 1.0F
_glTexCoord2f 1.0F, 1.0F: _glVertex3f 1.0F, 1.0F, -1.0
' Bottom Wall
_glTexCoord2f 1.0F, 1.0F: _glVertex3f -1.0F, -1.0F, -1.0F
_glTexCoord2f 0.0F, 1.0F: _glVertex3f 1.0F, -1.0F, -1.0F
_glTexCoord2f 0.0F, 0.0F: _glVertex3f 1.0F, -1.0F, 1.0F
_glTexCoord2f 1.0F, 0.0F: _glVertex3f -1.0F, -1.0F, 1.0F
' Right Wall
_glTexCoord2f 1.0F, 0.0F: _glVertex3f 1.0F, -1.0F, -1.0F
_glTexCoord2f 1.0F, 1.0F: _glVertex3f 1.0F, 1.0F, -1.0F
_glTexCoord2f 0.0F, 1.0F: _glVertex3f 1.0F, 1.0F, 1.0F
_glTexCoord2f 0.0F, 0.0F: _glVertex3f 1.0F, -1.0F, 1.0F
' Left Wall
_glTexCoord2f 0.0F, 0.0F: _glVertex3f -1.0F, -1.0F, -1.0F
_glTexCoord2f 1.0F, 0.0F: _glVertex3f -1.0F, -1.0F, 1.0F
_glTexCoord2f 1.0F, 1.0F: _glVertex3f -1.0F, 1.0F, 1.0F
_glTexCoord2f 0.0F, 1.0F: _glVertex3f -1.0F, 1.0F, -1.0F
_glEnd
Xrot = Xrot + 0.3F
Yrot = Yrot + 0.2F
Zrot = Zrot + 0.4F
If _Exit Then
DeleteTexture t 'if program end, first free texture from memory, then exit from GL and return to main loop
_glClear _GL_COLOR_BUFFER_BIT
ExitSignal = Not 0
Exit Sub
End If
End Sub
Sub GL_Init
If GL_InitInfo = 0 Then
' _glViewport 0, 0, _Width, _Height
GL_InitInfo = 1
End If
End Sub
Sub Init2
_glEnable _GL_TEXTURE_2D 'allow texture maping
_glShadeModel _GL_SMOOTH ' smooth
_glClearColor 0.1F, 0.1F, 0.1F, 0.5F 'Black background
_glClearDepth 1.0F ' depth buffer settings
_glEnable _GL_DEPTH_TEST ' Allow depth testing - try comment it and the run program. Object is then very deformed.
_glDepthFunc _GL_LEQUAL ' Depth testing type
_glHint _GL_PERSPECTIVE_CORRECTION_HINT, _GL_NICEST ' best perspective projection
End Sub
Sub DeleteTexture (nr As Long)
For P = LBound(GLL) To UBound(GLL)
If GLL(P).PointerGL = nr Then
Dim DEL As Long
DEL = GLL(P).PointerGL
_glDeleteTextures 1, _Offset(DEL)
Exit Sub
End If
Next
End Sub
Function LoadTexture (image As String)
If GL_InitInfo = 0 Then GL_Init
If _FileExists(image) Then
TT = 0
Do Until TT = UBound(GLL)
If GLL(TT).TextureName = image$ Then
LoadTexture = GLL(TT).PointerGL 'prevent memory leak loading next and next texture again and angain...
Exit Function
End If
TT = TT + 1
Loop
tex& = _LoadImage(image$, 32)
texinv& = _NewImage(_Width(tex&), _Height(tex&), 32)
_PutImage (0, _Height(tex&) - 1)-(_Width(tex&) - 1, 0), tex&, texinv&
_FreeImage tex&
Dim Texture As Long
_glGenTextures 1, _Offset(Texture) 'generate our texture handle (reserve place in memory for new texture)
_glBindTexture _GL_TEXTURE_2D, Texture 'select our texture handle (set this texture for use)
Dim m As _MEM
m = _MemImage(texinv&)
_glTexImage2D _GL_TEXTURE_2D, 0, _GL_RGB, _Width(texinv&), _Height(texinv&), 0, _GL_BGRA_EXT, _GL_UNSIGNED_BYTE, m.OFFSET
'glTexImage2D(GL_TEXTURE_2D, 0, 3, TextureImage[0]->sizeX, TextureImage[0]->sizeY, 0, GL_RGB, GL_UNSIGNED_BYTE, TextureImage[0]->data);
U = UBound(GLL)
GLL(U).PointerGL = Texture
GLL(U).TextureName = image
ReDim _Preserve GLL(U + 1) As GL_Loader
_MemFree m
'set our texture wrapping
_glTexParameteri _GL_TEXTURE_2D, _GL_TEXTURE_WRAP_S, _GL_REPEAT
_glTexParameteri _GL_TEXTURE_2D, _GL_TEXTURE_WRAP_T, _GL_REPEAT
'set out texture filtering
_glTexParameteri _GL_TEXTURE_2D, _GL_TEXTURE_MAG_FILTER, _GL_LINEAR 'for scaling up
_glTexParameteri _GL_TEXTURE_2D, _GL_TEXTURE_MIN_FILTER, _GL_LINEAR 'for scaling down
Else
Print "LoadTexture Error: "; image$; " - file not found."
End If
LoadTexture = Texture
End Function
