Draw that Circle

[SMcNeill]

I see your times and I ... umm...  slightly improve upon them with two magic letters...

Code: (Select All)

'Draw_that_circle
'
'By James D. Jarvis
'
'an alternate subroutine to draw a filled circle.
'the basic sub is rcircle, rcircle find X while stepping through Y for -radius to the radius
'dcircle,  references the precalculated table in the array nsqr() to otherwise drae as rcircle
'dmcircle, references the precalculated table in the array nsqr() as dcircle but makes uses of _mem for access.

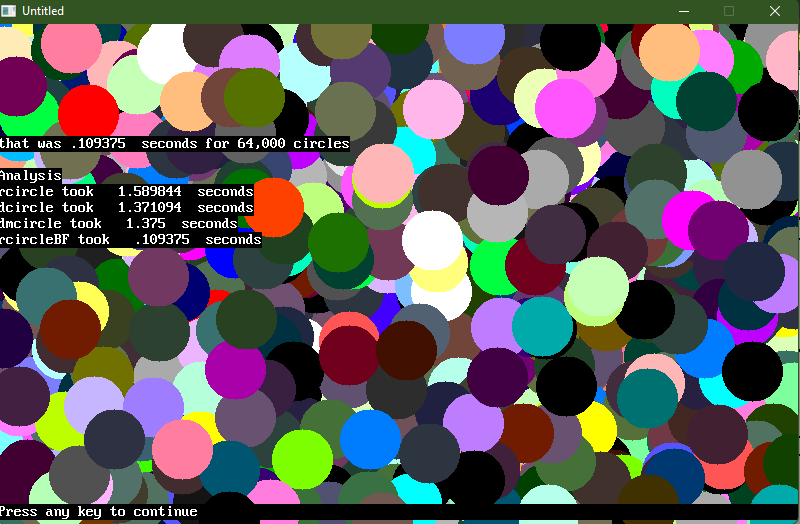

Screen _NewImage(800, 500, 256)
Randomize Timer
Dim Shared nsqr(-32000 To 32000) As Long 'table holds the square values
Dim Shared nsq As _MEM 'let's access the memblock of the table

For n = -32000 To 32000 'precaluclaitng the square values of -32000 to 32000
    nsqr(n) = Abs(n) ^ 2
Next
nsq = _Mem(nsqr())
Input "press enter to start"; any$

'draw without look up table
t1 = Timer
For n = 1 To 64000
    ' r = Int(1 + Rnd * 60) 'comment this out in each l0op to see the difference with a fixed radius
    r = 30 'chanign the size certainyl crerates a speed difference
    rcircle Int(Rnd * 800), Int(Rnd * 500), r, Int(Rnd * 256)
Next n
t2 = Timer
Print "that was"; t2 - t1; " seconds for 64,000 circles"

'draw with look up table
Input "Press enter to continue"; A$
t3 = Timer
For n = 1 To 64000
    'r = Int(1 + Rnd * 60)
    r = 30
    dmcircle Int(Rnd * 800), Int(Rnd * 500), r, Int(Rnd * 256)
Next n
t4 = Timer
Print "that was"; t4 - t3; " seconds for 64,000 circles"
Input "press enter to continue"; ask$
'draw with look up table and using mem offset
t5 = Timer
For n = 1 To 64000
    'r = Int(1 + Rnd * 60)
    r = 30
    dmcircle Int(Rnd * 800), Int(Rnd * 500), r, Int(Rnd * 256)
Next n
t6 = Timer

Print "that was"; t6 - t5; " seconds for 64,000 circles"
Input "press enter to continue"; ask$
t7 = Timer
For n = 1 To 64000
    'r = Int(1 + Rnd * 60)
    r = 30
    rcircleBF Int(Rnd * 800), Int(Rnd * 500), r, Int(Rnd * 256)
Next n
t8 = Timer
Print "that was"; t8 - t7; " seconds for 64,000 circles"


Print
Print "Analysis"
Print "rcircle took  "; t2 - t1; " seconds"
Print "dcircle took  "; t4 - t3; " seconds"
Print "dmcircle took  "; t6 - t5; " seconds"
Print "rcircleBF took  "; t8 - t7; " seconds"

_MemFree nsq


Sub dcircle (cx, cy, r, klr)
    'simple routine to draw a circle using a look up table to speed up calculations
    y = -r
    Do
        x = Sqr(nsqr(r) - nsqr(y))
        Line (cx - x, cy + y)-(cx + x, cy + y), klr
        y = y + 1
    Loop Until y > r
End Sub

Sub dmcircle (cx, cy, r, klr)
    'simple routine to draw a circle using a look up table to speed up calculations
    y = -r
    Do
        x = Sqr(_MemGet(nsq, nsq.OFFSET + (r + 32000) * 4, Long) - _MemGet(nsq, nsq.OFFSET + (y + 32000) * 4, Long))
        Line (cx - x, cy + y)-(cx + x, cy + y), klr
        y = y + 1
    Loop Until y > r
End Sub

Sub wcircle (cx, cy, r, klr)
    'was testing if there was a notable difference between using a do loop or a while loop, left it here if anyone else wanted to try it
    y = -r
    While y <= r
        x = Sqr(nsqr(r) - nsqr(y))
        Line (cx - x, cy + y)-(cx + x, cy + y), klr
        y = y + 1
    Wend
End Sub


Sub rcircle (cx As Long, cy As Long, r As Long, klr As _Unsigned Long)
    rsqrd = r * r
    y = 0
    While y <= r
        x = Sqr(rsqrd - y * y)
        Line (cx - x, cy + y)-(cx + x, cy + y), klr
        Line (cx - x, cy - y)-(cx + x, cy - y), klr
        y = y + 1
    Wend
End Sub

Sub rcircleBF (cx As Long, cy As Long, r As Long, klr As _Unsigned Long)
    rsqrd = r * r
    y = 0
    While y <= r
        x = Sqr(rsqrd - y * y)
        Line (cx - x, cy + y)-(cx + x, cy + y), klr, BF
        Line (cx - x, cy - y)-(cx + x, cy - y), klr, BF
        y = y + 1
    Wend
End Sub
